cracker box - is born
cracker box build
- start date jan 2013
- 16' 6" stretched the original boat drawing by 10% (allowable max)
- engine 1974 PCM 302 4v / 71C velvet drive 1:1 ratio - to be rebuilt - soon
Started my build by inputing data into CNC - data is basically the transfer of all dimensions & specific arc points required to cut all required frames (this aspect enabled an incalculable saving in time)
I have and will post my pics as they become available... I am now at the notching of the motor stringers, all frames are ready... I will be posting all of this including my used engine soon
-----------------------------------------------------------------------------------------------------------------------------

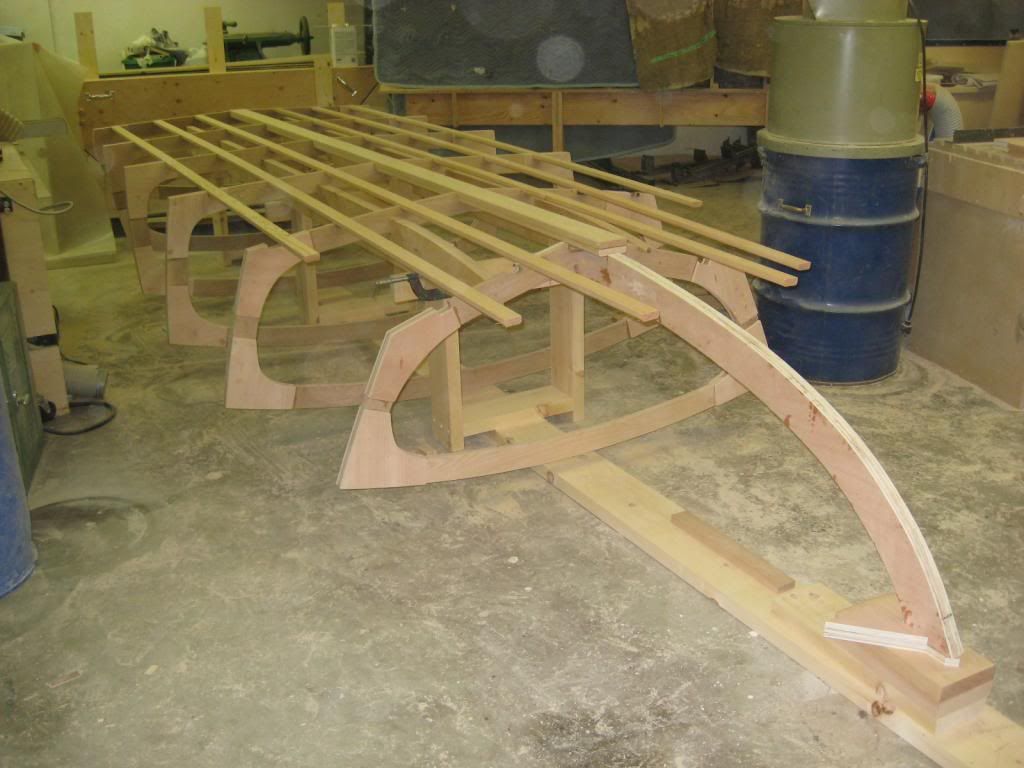

This is where I finished off today - Feb 14/2013 - just to give you a taste of where I am so far until I can upload everything
My boat should look something close to the bottom pic when completed - pics from Neil's Cracker Box, Totonto, Ontario, Canada (link to his photo's on Glen-L site) http://boatbuilders.glen-l.com/cracker- ... allery=492
- start date jan 2013
- 16' 6" stretched the original boat drawing by 10% (allowable max)
- engine 1974 PCM 302 4v / 71C velvet drive 1:1 ratio - to be rebuilt - soon
Started my build by inputing data into CNC - data is basically the transfer of all dimensions & specific arc points required to cut all required frames (this aspect enabled an incalculable saving in time)
I have and will post my pics as they become available... I am now at the notching of the motor stringers, all frames are ready... I will be posting all of this including my used engine soon
-----------------------------------------------------------------------------------------------------------------------------
This is where I finished off today - Feb 14/2013 - just to give you a taste of where I am so far until I can upload everything
My boat should look something close to the bottom pic when completed - pics from Neil's Cracker Box, Totonto, Ontario, Canada (link to his photo's on Glen-L site) http://boatbuilders.glen-l.com/cracker- ... allery=492
