cracker box - is born

Designs for inboard or outboard power

Moderator: BruceDow

fergal butler
Posts: 1292
Joined: Sun Sep 06, 2009 2:55 am
Location: Co.Dublin, Ireland.

Re: cracker box - is born

Post by fergal butler »

Looking good, it wont be long now till you will be sitting in her making engine noises :D

User avatar
andycap
Posts: 75
Joined: Sat Nov 05, 2011 8:32 am
Location: Cantley, Quebec, Canada

Re: cracker box - is born

Post by andycap »

- rebuilt PCM 302ci (220hp) marine engine is now almost complete, just a few miscl. items to take care of
Attachments
Last edited by andycap on Fri Feb 14, 2020 9:00 am, edited 1 time in total.

User avatar
andycap
Posts: 75
Joined: Sat Nov 05, 2011 8:32 am
Location: Cantley, Quebec, Canada

Re: cracker box - is born

Post by andycap »

first layer - 1/4 marine ply epoxied and fastened with silicone bronze screws
Attachments
Last edited by andycap on Fri Feb 14, 2020 9:09 am, edited 1 time in total.

User avatar
andycap
Posts: 75
Joined: Sat Nov 05, 2011 8:32 am
Location: Cantley, Quebec, Canada

Re: cracker box - is born

Post by andycap »


screws filled

User avatar
andycap
Posts: 75
Joined: Sat Nov 05, 2011 8:32 am
Location: Cantley, Quebec, Canada

Re: cracker box - is born

Post by andycap »

second layer of 1/4 inch marine ply being dry fitted
Attachments
Last edited by andycap on Fri Feb 14, 2020 9:16 am, edited 1 time in total.

User avatar
andycap
Posts: 75
Joined: Sat Nov 05, 2011 8:32 am
Location: Cantley, Quebec, Canada

Re: cracker box - is born

Post by andycap »

filler is sanded
Started prepping for second and final layer of 1/4 ply on the bottom while making sure not to place silicon bronze screws where strut and fin will be installed later.

pic of marine certified plywood label on my sheet goods
Attachments
Last edited by andycap on Fri Feb 14, 2020 9:22 am, edited 1 time in total.

User avatar
Roberta
Posts: 6737
Joined: Tue Jul 31, 2007 5:23 pm
Location: East Troy, Wisconsin

Re: cracker box - is born

Post by Roberta »

Look's Great!!! Nice work!!

Roberta :D :D :D
Roberta "Queen of the Boat Builders"
Built Zip "Oliver IV", Super Spartan "Jimmy 70", and Torpedo "The Glen L".

fergal butler
Posts: 1292
Joined: Sun Sep 06, 2009 2:55 am
Location: Co.Dublin, Ireland.

Re: cracker box - is born

Post by fergal butler »

Looking good, she looks longer in your photos than mine did :D

User avatar
gap998
Posts: 384
Joined: Wed May 20, 2015 5:40 pm
Location: Wales, UK

Re: cracker box - is born

Post by gap998 »

Coming along nicely! However, when it comes to fairing the joints, I think you are at risk of missing some low spots with that distracting background ;-) :lol:
Gary

Planning a whole fleet, but starting with a Zip...I think.

"Just when you think you've made something idiot-proof, someone builds a better idiot!"

User avatar
andycap
Posts: 75
Joined: Sat Nov 05, 2011 8:32 am
Location: Cantley, Quebec, Canada

Re: cracker box - is born

Post by andycap »

Hull planking, 1/4" by 6" wide Mahogany epoxied and stapled with nylon staples

laying out my boards on paper attached to my hull, maximizing full length boards as well as proper placement of the side planking scarf joints
Attachments
Last edited by andycap on Sat Feb 15, 2020 10:38 am, edited 6 times in total.

User avatar
andycap
Posts: 75
Joined: Sat Nov 05, 2011 8:32 am
Location: Cantley, Quebec, Canada

Re: cracker box - is born

Post by andycap »

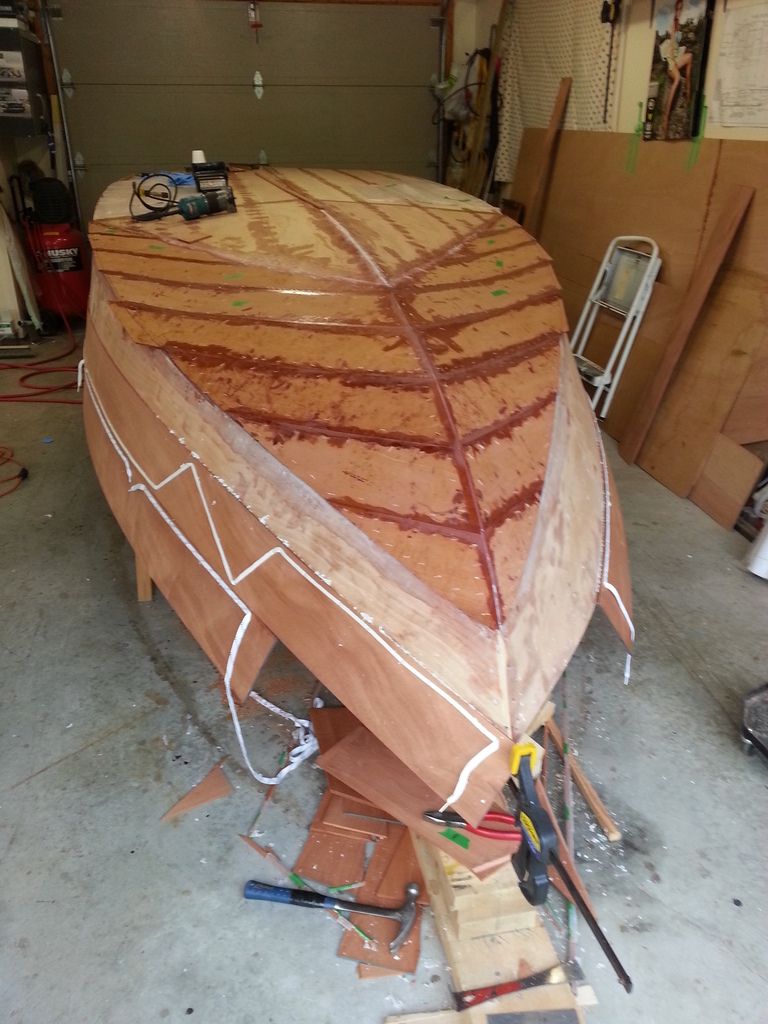

The white residue you see above the boards is scrapings/shavings that came from cleaning the squeeze out of epoxy that had adhesive filler mixed in which makes the epoxy look white.

Raptor staples were mostly used but I also had to use regular steel staples in curved or compound curved areas where more holding power was needed.
I used hockey skate laces to staple through, making removal of the steel staples easier without damaging the mahogany plank surfaces.
Attachments
Last edited by andycap on Wed Feb 19, 2020 9:47 am, edited 4 times in total.

User avatar
andycap
Posts: 75
Joined: Sat Nov 05, 2011 8:32 am
Location: Cantley, Quebec, Canada

Re: cracker box - is born

Post by andycap »

All planking of hull complete; routing of edges and sanding remains.
Yes, I mean lots of sanding!?!
Attachments
Last edited by andycap on Wed Feb 19, 2020 9:49 am, edited 2 times in total.

hoodman
Posts: 2583
Joined: Thu Nov 10, 2011 8:48 am
Location: Lafayette, IN

Re: cracker box - is born

Post by hoodman »

Looks awesome! Your not the only one in sanding hell.
Matt

Building a Geronimo......!
viewtopic.php?f=2&t=25139

Benj269
Posts: 65
Joined: Wed Aug 20, 2014 8:03 am

Re: cracker box - is born

Post by Benj269 »

I'm going to guess by the weatherstripping looking white stuff around the sheers that you vacuum pressed the mahogany to the ply? Do you have any pictures or details of that?

slug
Posts: 1447
Joined: Sat Sep 22, 2007 9:49 am
Location: Colborne ON Can

Re: cracker box - is born

Post by slug »

Think that may be tape that he stapled through.
Doug
