 Post subject: Plywood Laminating the Chine?
PostPosted: Fri Nov 06, 2009 3:37 pm
Offline

Joined: Thu Aug 20, 2009 2:00 pm
Posts: 119
Location: Leduc (Edmonton), Alberta
I was wondering, and forgive my rookiee question as I am certain it must have been asked before.. but out of curiousity... has anyone laminated some plywood to the backside/inside of the chine like its recommended for the keel?

I was thinking using a slightly thinner 3/4" stock lumber + 1/4" plywood backing epoxied together before its installed. The chine should still retain its screw holding and fairing properties right? Wouldn't the plywood backing help keep the material from spliting/cracking.. or not?

I'm curious.. as it seems Chine splitting is not exactly a rare event.

_________________
Ian (aka Iggy)


Top
 Profile

 Post subject: Re: Plywood Laminating the Chine?
PostPosted: Fri Nov 06, 2009 3:48 pm
Offline
User avatar

Joined: Fri Dec 08, 2006 5:21 pm
Posts: 2759
Location: tarpon springs fl
Logically, I don't see a problem with that,but I would laminate in place,not before.

If you laminate your chines/shears from multiple pieces of solid stock instead of just one thickness, you have essentially made plywood although the grain crossing is not as pronounced.

_________________
you only regret the things you didn't do

If it doesn't fit right,it isn't

"When you dance, your purpose is not to get to a certain place on the floor. It's to enjoy each step along the way. ~ Wayne Dyer ~ "


Top
 Profile

 Post subject: Re: Plywood Laminating the Chine?
PostPosted: Fri Nov 06, 2009 4:37 pm
Offline
User avatar

Joined: Thu Mar 03, 2005 2:40 pm
Posts: 294
Location: Chelsea, Quebec, Canada
We laminated 5 ply 1/4" marine plywood to the Douglas Fir frames, doubled keel and chines. As Warren says, laminate in place after the chines have been sprung, before the hull ply goes on. Added insurance if the wood members ever split ! Apply several coats of epoxy to seal the plywood edges.

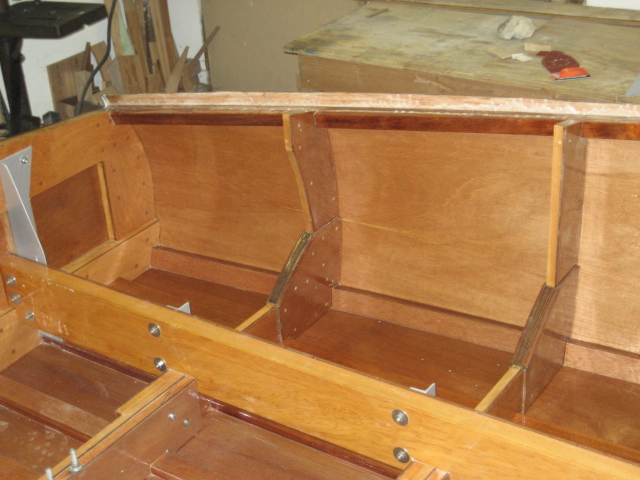

Click here to see the photo in context.
____________________
Paul Kane Chelsea, PQ

Building the Glen-L Hot Rod : http://www.boats.chelseacoachworks.com


Top
 Profile

 Post subject: Re: Plywood Laminating the Chine?
PostPosted: Fri Nov 06, 2009 4:58 pm
Offline
User avatar

Joined: Sat Nov 15, 2003 10:42 pm
Posts: 1596
Location: Ontario, Canada
I could be wrong but I'm not sure you would want to laminate the ply to the chines after the chines are in place. Wouldn't that put the ply on the outside (sheeting side) of the hull and I suspect it would make fairing more difficult. I think if you want to do this lamination you would have to apply it to the chine before the chine has been attached to the boat.


Maybe it would make no difference at all when fairing which side of the chine the ply is on :?:
Just my 2 cents.

_________________
Duane Wood
Building a Rebel ( started 01/07/08 )
A Tornado will be next
Glen-L People Helping Glen-L People


Top
 Profile

 Post subject: Re: Plywood Laminating the Chine?
PostPosted: Fri Nov 06, 2009 5:41 pm
Offline
User avatar

Joined: Thu Mar 03, 2005 2:40 pm
Posts: 294
Location: Chelsea, Quebec, Canada
Sorry if I wasn't clear enough, but the ply lamination is fitted from the inside, between the frames after the chine is sprung. It's very subtle, but if you look at the pic, the laminated chine matches the Sapele sides. Prevents splitting and evens out the colors ...
____________________
Paul Kane Chelsea, PQ

Building the Glen-L Hot Rod : http://www.boats.chelseacoachworks.com


Top
 Profile

 Post subject: Re: Plywood Laminating the Chine?
PostPosted: Fri Nov 06, 2009 5:46 pm
Offline
User avatar

Joined: Sat Nov 15, 2003 10:42 pm
Posts: 1596
Location: Ontario, Canada
ahhh, sorry Paul I missunderstood. What do you think the problem would be, if any, if you laminated the chines full length with Ply, as I think Iggy is suggesting, and then installed them? Do you think it might make them too stiff to take on the correct shape when sprung?

_________________
Duane Wood
Building a Rebel ( started 01/07/08 )
A Tornado will be next
Glen-L People Helping Glen-L People


Top
 Profile

 Post subject: Re: Plywood Laminating the Chine?
PostPosted: Fri Nov 06, 2009 6:12 pm
Offline
User avatar

Joined: Fri Dec 08, 2006 5:21 pm
Posts: 2759
Location: tarpon springs fl
Duane,That's my take on laminating first, that the chine would be stiffer to bend around

I meant instaling a layer of ply,then the solid chine next so the ply is on the inside of the boat

_________________
you only regret the things you didn't do

If it doesn't fit right,it isn't

"When you dance, your purpose is not to get to a certain place on the floor. It's to enjoy each step along the way. ~ Wayne Dyer ~ "


Top
 Profile

 Post subject: Re: Plywood Laminating the Chine?
PostPosted: Fri Nov 06, 2009 6:37 pm
Offline
User avatar

Joined: Thu Mar 03, 2005 2:40 pm
Posts: 294
Location: Chelsea, Quebec, Canada
That's the fun with boatbuilding - no fixed way of doing things !

Our thinking was that the ply fitted between the frames would prevent them from shifting in the horizontal plane if the chine split or the chine fasteners ever snapped ...
____________________
Paul Kane Chelsea, PQ

Building the Glen-L Hot Rod : http://www.boats.chelseacoachworks.com


Top
 Profile

 Post subject: Re: Plywood Laminating the Chine?
PostPosted: Fri Nov 06, 2009 9:45 pm
Offline

Joined: Thu Aug 20, 2009 2:00 pm
Posts: 119
Location: Leduc (Edmonton), Alberta
I was thinking of cutting down the thickness from 7/8 to 5/8" than laminating the 1/4" plywood on the inside before the bend. I can only imagine how it might flex or what kind of strength it might have.

I could laminate between the frames on the inside... but I was hoping to reduce the odds of the chine splitting at the frames as well as in between.

I don't have a lot of extra lumber to experiment.... I have sufficient to do the chines a few times if I had to.. but if laminations are less likely to fracture, and chines seem to be a big culprit for fracturing.. I was curious if it might not be a bad idea to mix it up a bit?

I am a complete newbie.. and I will likely just do the traditional method on my first boat unless someone else has tried this and knows how it performs long time. Better the Devil you know sometimes.. right?

_________________
Ian (aka Iggy)


Top
 Profile

 Post subject: Re: Plywood Laminating the Chine?
PostPosted: Sat Nov 07, 2009 6:57 am
Offline
User avatar

Joined: Sat Nov 15, 2003 10:42 pm
Posts: 1596
Location: Ontario, Canada
upspirate wrote:
Duane,That's my take on laminating first, that the chine would be stiffer to bend around

I meant instaling a layer of ply,then the solid chine next so the ply is on the inside of the boat



IF I were to do this I think I would take my chances with laminating first and then install the chines. If you want to install the ply first on the boat and then instal the chine I think your going to need to use a slow hardener for your epoxy so that it wont go off before you can get the chine bent into place. This is my concern. If you have any issues what so ever getting the chine to bend into place your epoxy might go off before the chine touches the ply. This is could very likely just be me over thinking these things. I tend to do that.

BTW Iggy the shears are also a part that many have had issues bending into place. It might be another candiate for a thin ply lamination.

Paul, I like the idea that the frames are "keyed", so to speak, into the chines. good idea. I'm not sure that will help with spliting issue but if anything did ever come loose it would help keep the frame it place.

_________________
Duane Wood
Building a Rebel ( started 01/07/08 )
A Tornado will be next
Glen-L People Helping Glen-L People


Top
 Profile

 Post subject: Re: Plywood Laminating the Chine?
PostPosted: Sat Nov 07, 2009 12:21 pm
Offline
User avatar

Joined: Thu Mar 01, 2007 7:33 am
Posts: 554
Location: Owasso, Oklahoma
Don't know if I'd do this or not...in retrospect, sounds like a good idea...but, I think my current problem revolves around the screw in the forward frame and not the amount of tension.

3/4 bends differently than 4/4 as well as kiln dried/green, heart/sap, vertical/horizontal grain, species of wood (oak/mahogany/DF/SYP)...a lot of variables.

Remembering the amount of push it took to get the chine home caused me some concern when I drilled that screw hole in the forward frame. So the fault, I think, is mine and not the idea, plan, or ability of the wood.

_________________
Bill

I told my wife we needed a three-car garage for my projects...she told me to ask her for permission next time before I buy a house.
http://www.unitybuild.net


Top
 Profile
