a 15' outboard mini-cruiser

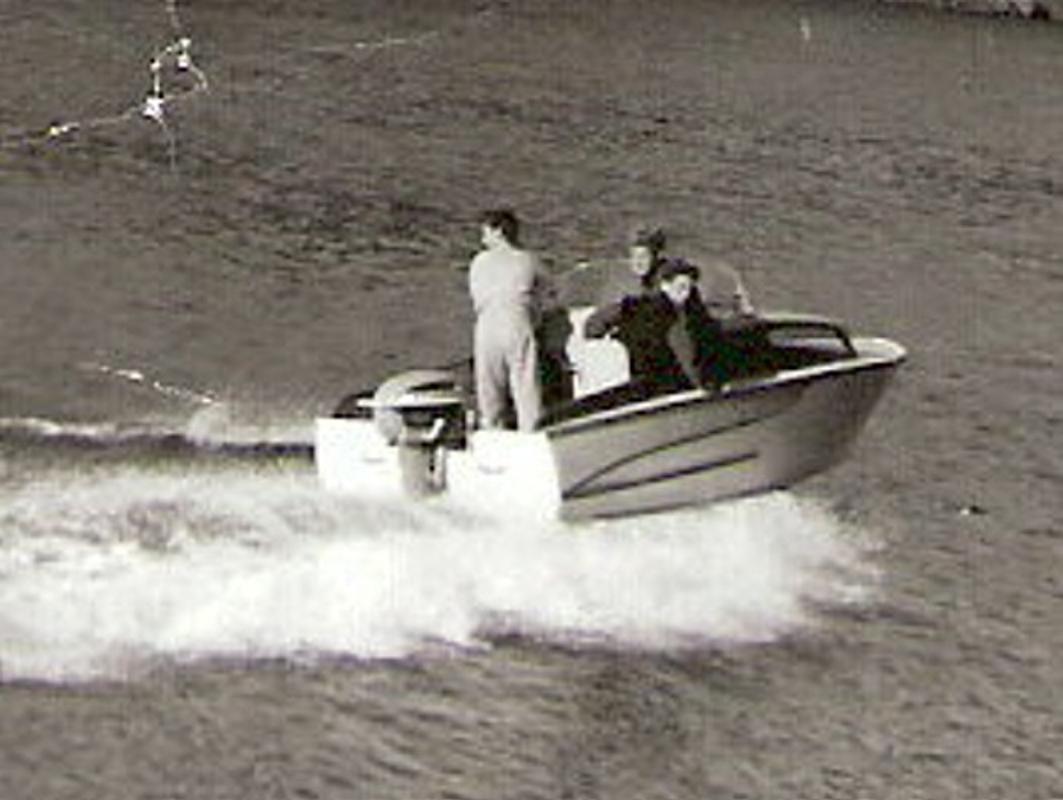

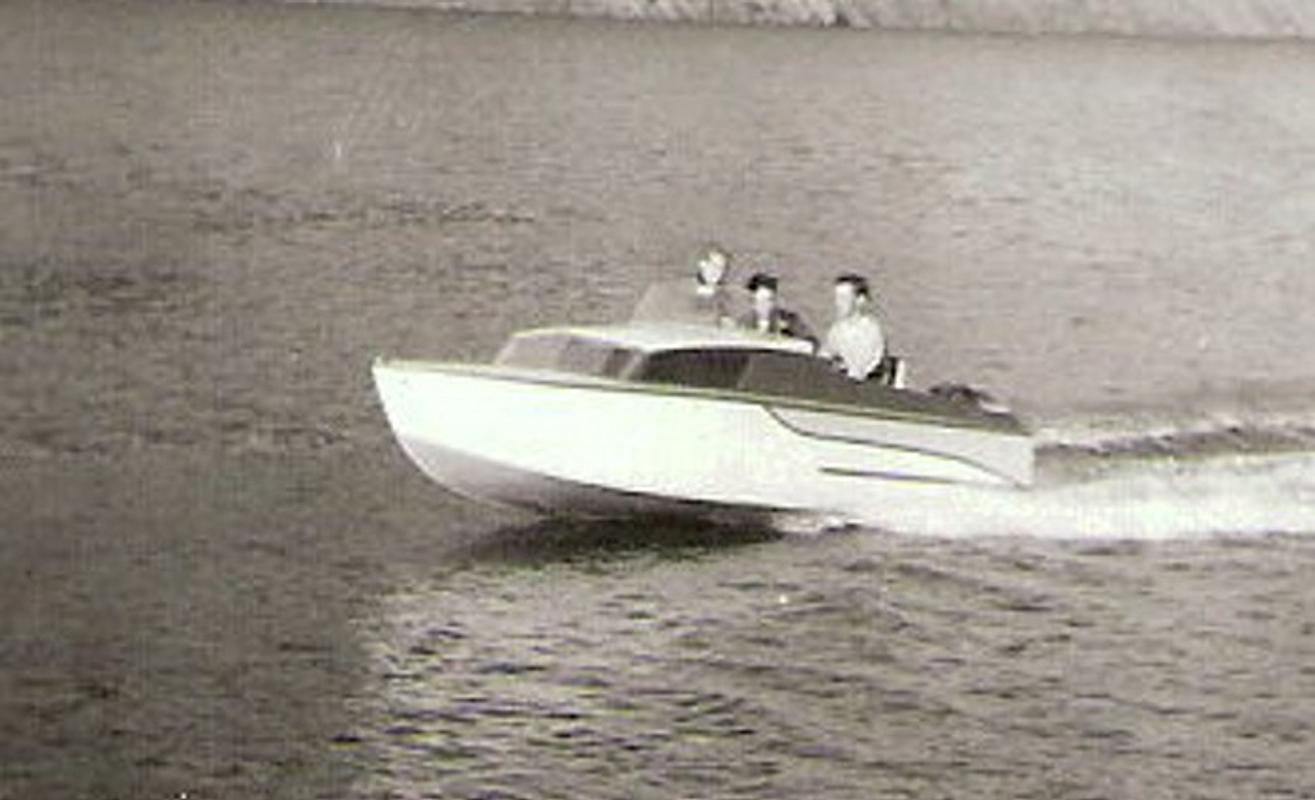

CRUISETTE is a minature cruiser, capable of filling many needs. She has built-in berths for the camper or overnight cruising man. She has cockpit space for the fisherman, and yet cabin protection from the unexpected squall. And, she has the ability to be a good ski boat as well. The hull is both fast and smooth. You'll appreciate the dry, level ride, and the generous beam gives exceptional safety and load-carrying ability.
The construction of the CRUISETTE is simple for the amateur, but sturdy, and costs are low. And because of the compact size, you can trailer the boat easily to any body of water.
COMPLETE PLANS include FULL SIZE PATTERNS for stem, breasthook, transom knee, and half-section patterns for the frames and transom. Includes instructions, Bill of materials and fastening schedule.
- Length overall:
- 15'-0"
- Beam:
- 6'-0"
- Hull draft:
- 4"
- Hull depth:
- 2'-9"
- Hull weight (approx.):
- 450 lbs.
- Height overall:
- 3'-11"
- Cabin headroom:
- 3'-4"
- Cockpit size:
- 5'-11" x 4'-5"
- Sleeping accommodations:
- 2
- Hull type:
- Vee bottom, hard chine, developed for sheet plywood planking.
- Power:
- Single short shaft outboard motor to 60 hp maximum. Long shaft motor can be used if transom modified.
- Can the hull be extended or shortened?:
- Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
- Trailer:
- Designed for use with Glen-L Series 1000 boat trailer plans.
